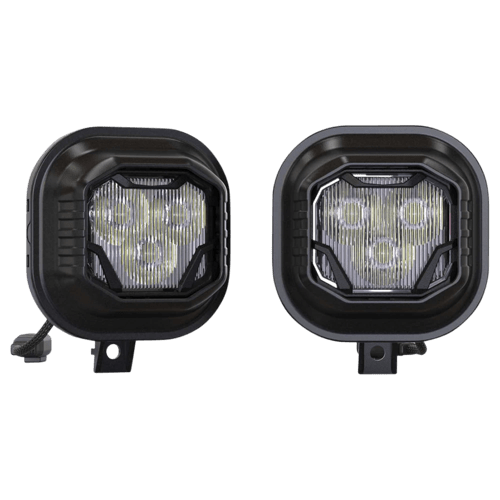

4B FOG BRACKETS TYPE SD
- FREE SHIPPING WHEN BUYING PACKAGES OR 4 ITEMS ( wheels or tires )
- In stock, ready to ship
- Backordered, shipping soon
FEATURES & BENEFITS
- NCS & HXB Options: Choose SAE-compliant NCS or HXB Wide Beam for exceptional lighting.
- Easy Install: Plug-and-play setup, no modifications needed.
- Full Adjustability: Precise beam control with +/- 6° vertical adjustability.
- Air-Cooled: Ducts for active cooling, ensuring long-lasting brightness.
- All-Weather: Opt for white or yellow-output for versatile performance.
WHAT’S INCLUDED
-
Fog Light Brackets: 2x (One Pair) BAF021 Brackets
-
LED Pods: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam)
-
Hardware: Complete Pack (Stainless Steel)
-
Wiring: Plug N Play Connection Kit
WARRANTY INFORMATION
COMPATIBILITY
-
FORD EXCURSION: 1999-2016*
-
FORD SUPER DUTY: 1999-2016*
-
*NOTE: 1999-2010 Req. Minor Modification
-
REPLACES FORD PART #: 6C3Z-15200-AA, 6C3Z-15200-BA, 7C3Z15200AA, 7C3Z15201AA, BC3Z15200A, BC3Z15201A, XL3Z13466A
COMPLIANCE
TECHNICAL SPECIFICATIONS
-
Note: These specifications are per pod / each!
-
Intensity:
-
NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
-
NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
-
HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
-
Input Voltage: 9-18V DC
-
Power (stabilized): 15.6w (NCS) 42w (HXB)
-
Current: 1.5A (NCS) or 3.2A (HXB)
-
Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)
-
Dimensions: 82mm W, 67mm H, 60mm D
-
Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))
-
Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
-
Input: Proprietary Overmolded Deutsch DT 2-Pin
-
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
